4G CBRS USB Dongle | IDG120-C6U01
• Cat-6 CBRS LTE USB Dongle
• 1* Nano-SIM (4FF) Slot
• 2* Internal LTE Antennas
• 1* Bi-Color LED Indication
• Plastic (PC) Housing
• Operation at -30°C ~ 40°C

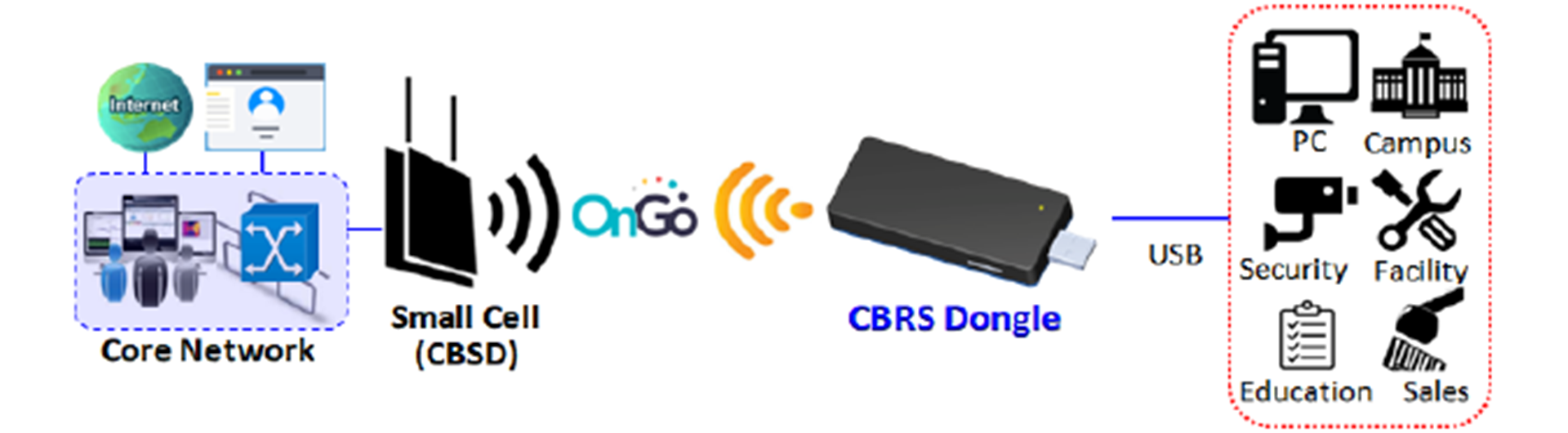

| ‧ | Providing capability for laptop PC or existing USB-based equipments to connect to a LTE CBRS OnGo network. |
| ‧ | Build with a high-speed Cat-6 LTE-TDD modem which can meet data throughput requirement for various applications. |
| ‧ | Carrier aggregation (CA) support that can bring higher data throughput and better user experience in the field. |
| ‧ | Compact dongle design with two internal CBRS LTE antennas. Easy for installation and carry. |
| ‧ | Compatible with Microsoft Windows, Linux, Apple Mac, and Google Chromebook operating system. |
| Device Interface | |
|---|---|
| LTE Module: | 1*Cat-6 LTE-TDD |
| SIM: | 1*Nano-SIM (4FF) |
| LTE Band: |
Band 48(CBRS) 2x CA(Downlink) B48+B48 |
| Power Input : | DC 5V (USB Type A) |
| LED: | 1* bi-color LED |
| WAN & Uplink | |
| WAN: | CBRS LTE |
| Network Monitor: | ICMP (through Connection Manager) |
| Environment | |
| Operation Temperature: | -22°F to +104°F (-30°C to +40°C) |
| Storage Temperature: | -22°F to +140°F (-30°C to +60°C) |
| Humidity: | 10%~95% (non-condensing) |
| Enclosure: | Plastic, PC |
| Dimension: | 92(L)x36.2(W)x14(H)mm |
| Certification | |
| FCC Part 15B | |
| FCC Part 96 for CBRS | |
| CBRS OnGo capable | |
| Package Accessory | |
| 1*IDG120-C6U01 | |
| 2* LTE Antenna (inside the USB dongle) |
