5G Ethernet Modem | IDG450-0GE01
• Single SIM
• 1*RJ45 2.5GbE
• Metal Housing, Wall Mount
• DC 5V(USB Type C)
• -30°C ~ 60°C

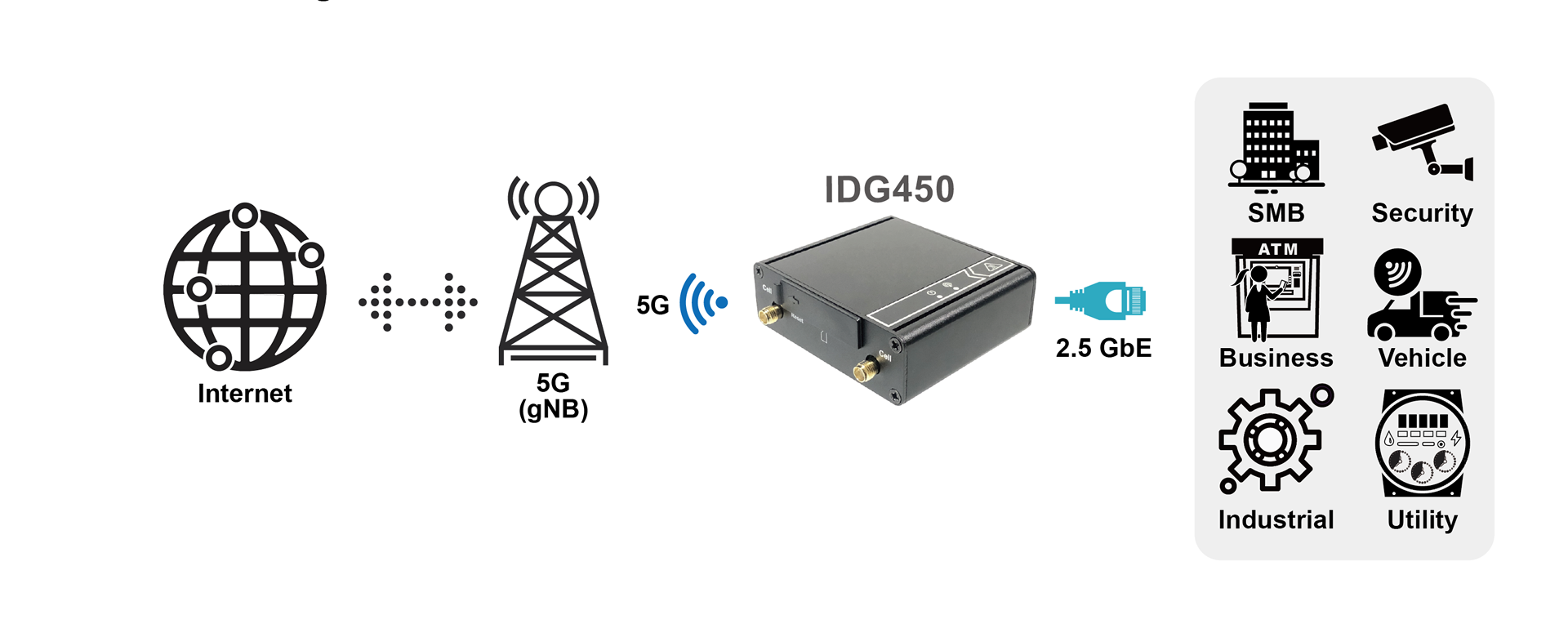

| The IDG450 is a 5G Ethernet modem which includes 5G-NR and LTE dual-mode cellular capability for the Internet uplink and a 2.5 Gigabit Ethernet port to connect the local device. With its smart network monitoring and auto-reconnect mechanism, it’s qualified to provide a robust and consistent connection for the application’s need in the field. The industrial design also makes the device to operate in a harsh environment. 5G-NR cellular helps the device to replace original Gigabit-level fixed line and make the service more available where people need it. | |
|
| Device Interface | |
|---|---|
| Cellular Module: | 1*5G/LTE, 3GPP Rel. 15 |
| 5G NR : | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE Band: | FDD: B1-B5/B7/B8/B12-B14/B17-B20/B25/B26/B28-B30/B32/B66/B71 TDD: B34/B38/B39-B43/B48 |
| 3G Band: | B1/B2/B3/B4/B5/B6/B8/B19 |
| SIM: | 1*micro-SIM (3FF) |
| Ethernet: | 1*RJ45 2.5GbE |
| Power Input : | DC 5V (USB Type C) |
| Antenna Con.: | 4*SMA (F)-5G/LTE |
| WAN & Uplink | |
| WAN: | 5G/LTE Dual-Mode Cellular |
| Network Monitor: | ICMP/DNS Query |
| Protocol | |
| LAN & VLAN: | DHCP Server |
| IPv6: | Cellular IPv6 |
| Security | |
| Firewall: | SPI Firewall with Stealth Mode |
| Administration | |
| Configuration: | Web UI, CLI |
| System: | Upgrade, Reboot & Reset |
| Environment | |
| Operation Temperature: | -22°F-140°F (-30°C-60°C) |
| Storage Temperature: | -40°F-185°F (-40°C-85°C) |
| Humidity: | 10%~95% (non-condensing) |
| Enclosure: | Metal |
| Dimension: | 78(W)x71(D)x26(H)mm |
| Certification | |
| FCC(*) | |
| IC/ISED (*) | |
| Carrier Approval | |
| AT&T(*) | |
| Verizon(*) | |
| Package Accessory | |
| 1*IDG450-0GE01 | |
| 4*Cellular Antenna | |
| 1*Power Adapter (DC 5V) | |
| 1*Cat 6 RJ45 Cable |
