Device Interface

• 5G NR Module: 1*5G NR FR1 (sub 6GHz)
• 3GPP: Release 16
• SIM: 1* 4FF Nano-SIM slot (push-push type) for 1.8V / 3V SIM/USIM, support dual SIM failover through Board-to-Board I/F.
• 5G NR Band (FR1): n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
• 4G LTE Band: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 46(LAA)/ 48/ 66/ 71
• WCDMA Band: B1/ 2/ 4/ 5/ 8/ 19
• Data Interface: USB 3.1 through board-to-board connector
• Power Input: DC 3.3V through board-to-board connector
• Antenna: 4 *MHF4 receptacle connectors for 5G antenna connection

WAN & Uplink

• WAN: NAT / Modem mode

Control Interface

• Web-based GUI: Configuration, Status monitoring
• AT Command: 3GPP TS 27.007 AT commands

Supported OS

• Linux: Linux kernel 5.0 or higher
• Windows: Windows 10 or higher; MDG230 driver installation is required.

Environment

• Operation Temperature: -30°C-75°C
• Storage Temperature: -40°C-85°C
• Humidity: 10%~95% (non-condensing)

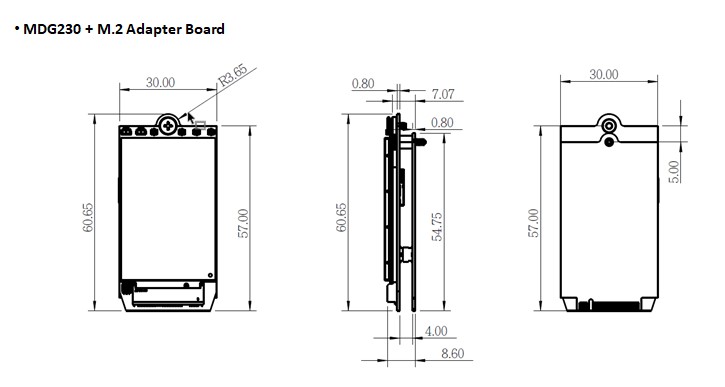

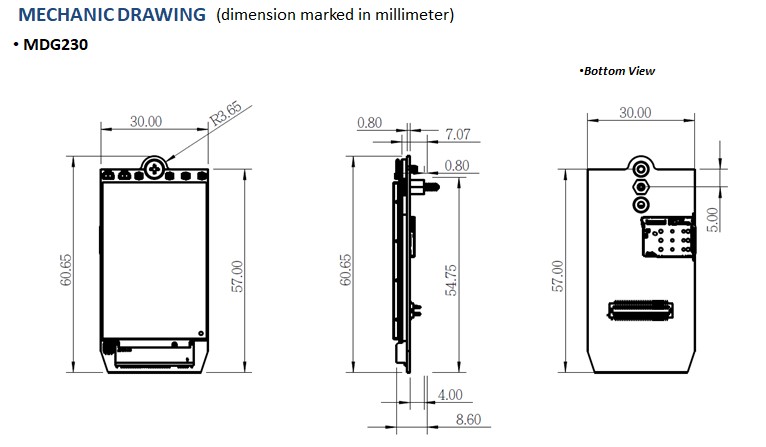

• Dimension: 60(L)x30(W)x8.6(H) mm

Certification

• FCC
• PTCRB

Carrier Approval

• AT&T
• Verizon

Package Contents

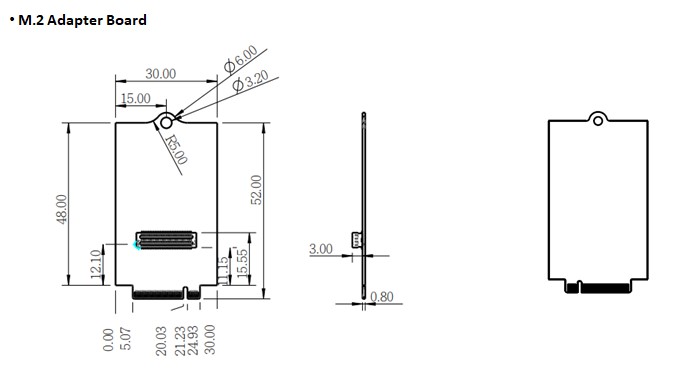

• 1*MDG230, 1* M.2 Adapter Board, 1*Screw Pack

Comment:

1.Linux kernel version 4.x or lower support case-by-case

2.Specifications are subject to change without prior notice

INTRODUCTION

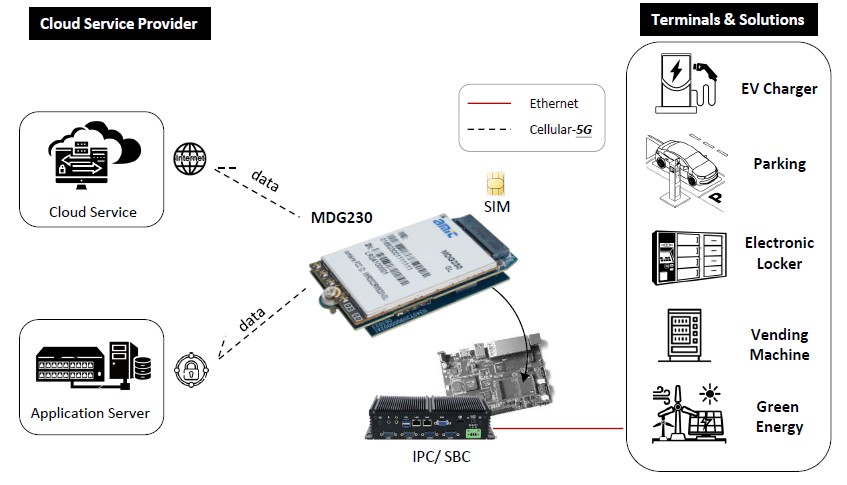

The MDG230 is an embedded 5G modem with USB 3.1 interface through its board-to-board connector. It operates as an Ethernet over USB end device that offers 5G connectivity once a SIM card is inserted and pre-configured through user-friendly web GUI. With its intelligent connection monitoring  mechanism, it can provide more reliable 5G connection for mission-critical applications.

BENEFITS

1. Carrier approval - cost saving and time-to-market

2. Plug and play - Linux kernel 5.0 & Windows 10, or higher version.

3. Flexible SIM selection – support internal SIM / external SIM
